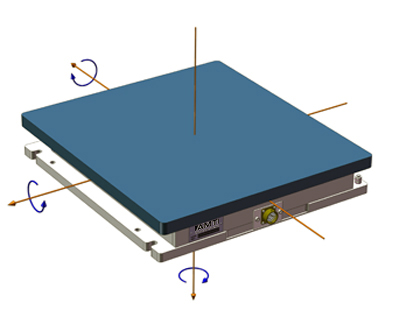

AMTI’s patented sensor design measures and isolates all six force components quantifying them accurately and separately. High overload protection on all axes and ability to acquire High frequency data especially in Sports where the impulse rise time is short are some of the advantageous features. High Sensitivity, Low Crosstalk and Excellent Repeatability are what make AMTI force platforms the leading choice of Biomechanics and Gait Labs the world over

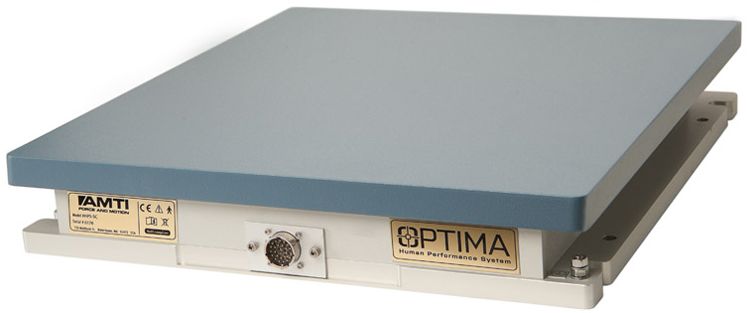

In addition, the Optima Human Performance System is a revolutionary development in force measurement technology, offering a 10-fold improvement over any force platform system on the market.



OPTIMA-HPS

High Performance Series

The most accurate force plates on the market.

The OPTIMA-HPS line undergoes the highest density calibration – this means the largest number of calibration locations and applied loads – resulting in the highest accuracy available

COP ERROR, TYP* <0.2 mm
CROSSTALK, % APP LOAD, TYP ±0.05%
MEASUREMENT ACCURACY, % APP LOAD, TYP* ±0.1%


Available Models
Model Number Dimensions Capacities Available
HPS400600 400 mm x 600 mm 4448, 8896 N
HPS400600HF 400 mm x 600 mm 4448, 8896 N
HPS464508 464 mm x 508 mm 4448, 8896 N
HPS464508HF 464 mm x 508 mm 4448, 8896 N


OPTIMA-BMS

Bio-Measurement Series

OPTIMA Technology in the most affordable package.

The OPTIMA-BMS line expands AMTI’s patented OPTIMA calibration to our large area force platforms.

The result is a force plate that is easily more accurate – right to the edges – than any of our competitors systems and second only to the High Performance Series (HPS).



Available Models
Model Number Dimensions Capacities Available
BMS400600 400 mm x 600 mm 4448, 8896 N
BMS400600HF 400 mm x 600 mm 4448, 8896 N
BMS464508 464 mm x 508 mm 4448, 8896 N
BMS464508HF 464 mm x 508 mm 4448, 8896 N
BMS600600 600 mm x 600 mm 4448, 8896 N
BMS600900 600 mm x 600 mm 4448, 8896 N
BMS6001200 600 mm x 1200 mm 4448, 8896 N
BMS900900 900 mm x 900 mm 4448, 8896 N

See below the Forceplates for various applications plate is suited best for your set-up:

  • Balance
  • Gait
  • Sports
  • Special Requirements: High Frequency, Glass top, Non-conductive, Low Capacity
Balance
  • Static balance applications are unique in that they typically generate very small forces and involve very little visible movement. Vertical loads seldom exceed body weight, and the horizontal forces are very small.
  • In order to obtain the highest COP resolution it is best to choose the lowest capacity (and therefore the highest sensitivity) force plate available.
Accusway

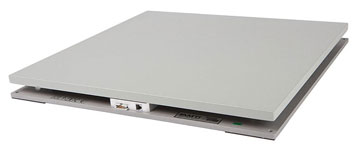

  • AMTI’s portable solution for accurate measurements of static balance parameters, comes along with a standalone software package.

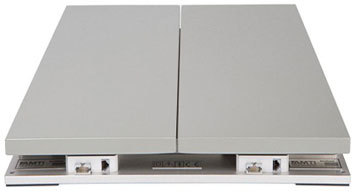

  • It can also be integrated with other third party Software as well. If you would like to isolate the forces and moments produced by each foot during your balance studies then Dual top Accusway is what you should look at.
Gait

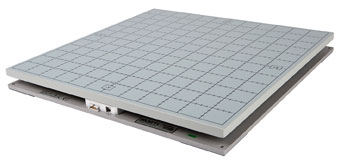

  • AccuGait-O is AMTI’s portable solution for Gait applications. With a compact square size of 19.75”, it can be used without special mounting hardware. The Accugait software is a very intuitive package that can aid in your gait analysis and research.
  • For a more sophisticated model, choose from the Optima BMS Series or Optima High Performance Systems, OR 6-7 or the high end OPT - Optima Human Performance systems. Engineered to give you accuracy beyond compare, these forceplates will set new standards in your lab.
  • All these forceplates require mounting hardware to prevent external noise in the data and to ensure patient safety.
Sports
  • Sports performance applications are more demanding than normal gait and balance applications. Most sports applications involve jumping, sprinting etc and consequently produce large impulse forces which are potentially several times body weight. The impulse rise times are relatively short, leading to higher-frequency content in the signal. Besides this, the athlete would need larger surface/ target areas in order to capture data during dynamic sports activities.
  • AMTI has a wide range of force plates ideally suited for these requirements.

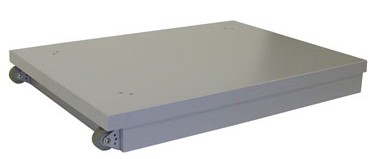

  • Beginning with Accupower, the portable solution, you can move onto the BMS series which have large surface areas.
Special Requirements:

Need to measure forces and moments under water?
  • Then the OR6-WP - AMTI’s water proof forceplate is what you need

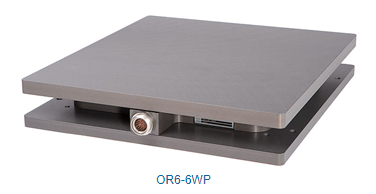

  • The OR6-6WP is a high-natural-frequency force plate that features a waterproof design, complete with an internal pressure compensation bladder for accurate underwater measurements.
Need to record the activity from below the forceplate?
  • Then the OR6-GT- forceplate is what you need

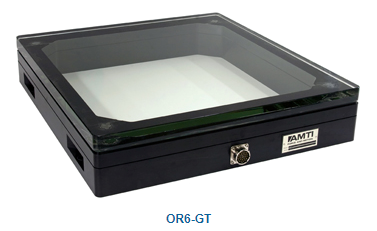

  • The OR6-GT force plate features a glass top, which allows activities on the top surface of the force plate to be viewed and recorded from the underside.

If your application calls for Highfrequency data acquisition, the HF range of Forceplates will meet your requirements.

Apart from all this, if your requirement is something still more specific and beyond the standard then AMTI works to help design a solution for your needs.
